• 产品品牌： REAGEN
• 产品货号： RNE90222
• 产品规格： 台
• 产品适用： Chitinous Dispenser
• 产地来源： 中国深圳

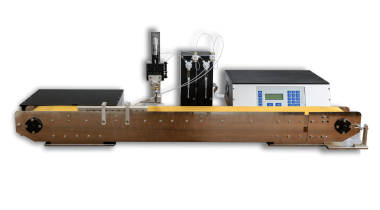

Chitinous Dispenser Model:RNE90222

The machine can dispense reagents, on the NC membrane surface.  High efficiency for producing lateral flow strip. Control one line need one pumps.

Characteristics :

- High efficiency: Comparing desktop dispenser, The efficiency will be more higher than desktop dispenser.

- Low reject rat,: Because of Chitinous process.

- Precision Pump (XLP6000,48000 micro-steps) make sure the volume preciseness

- Specific dispense tip design, PEEK tube in touch, suitable to dispense line on membrane

- Use the Arm micro-chip controller and uc/os operation system to make sure system stable

- Programmable parameters for dispensing volume, speed and spacing

- Easy to operate little reagent to dispense line, spray line

- Micrometer adjuster controls tip height and Air pen hole size.

- Easy operation and Durable and maintenance free design

Specification:

Power： 90-250VAC 50/60HZ  3A

Weight： 40KG

Size： 1200(L)×60(W)×20(H)㎜

Volume accuracy：±0.1%

Position Precision：±0.1mm

Chitinous Speed:  1-8 m/min

line Space:  >2 mm

Syringe size:  2.5 ml

Option:

1. How many lines to dispenser

A.Two lines,C/T

B.Three lines,C/T1/T2 or C/IgG/IgM

C.Four lines,C/T1/T2/T3

2. Voltage

A.220V

B.110V

3.Plug type
